Antarctic cooling pads are designed for adjusting indoor humidity. It makes use of the new-generation polymer material and advanced spatial crossing linking technology, which has several advantages, including high water absorption, great water resistance, mildew resistance, long life, superior cooling efficiency and so on.
Key features of Antarctic cooling pad
● Great permeability ensures that water is uniformly distributed along the length of the wetted pad contributing to higher cooling efficiency, which can reach over 85%.
● Antarctic cooling pads involves surface active agent, which can absorb water naturally, with a high rate of diffusion and lasting effectiveness. Generally, a drop of water can be totally diffused within 4-5 seconds.
● The water absorption rate of Antarctic cooling pads can be 60~70mm/5min or 200/1.5hour,which has achieved international standard.
● Antarctic cooling pads does not contain phenol or other chemical substance which is irritant to the skin. Those products are harmless and non-poisonous while installing or using, and safe, environments protective, energy saving, economic and durable.
● At present, ripper paper comes with two specifications (60/90, 70/90) for customers to choose from. If you have other requirements, we can also customize for you.
● Since they are non-toxic, non-smelly, clean and eco friendly, Antarctic cooling pads are also used in temperature reduction, humidification and air purification.
● There are variety material of shape for choosing, including galvanized plate, aluminum alloy, plastic steel, etc.
● You can also select color according to your needs, including brown, green, brown and green double colours, black edge, etc.
Specification of Antarctic cooling pad
| Model | | |
| H(mm) | 1500, 1800, 2000 | 1500, 1800, 2000 |
| W(mm) | 900, 600, 300 | 900, 600 |
| D(mm) | 100, 150, 200, 300 | 100, 150, 200, 300 |
| h(mm) | 7 | 7 |
| α(°) | 45 | 45 |
| β(°) | 45 | 15 |
Tips:
H: Height of cooling pad W: Width of cooling pad
h: Height of flute D: Depth of cooling pad
α: 1 angle of flute β: 2 angle of flute
Performance Curve of Antarctic cooling pad
Antarctic cooling pad 7090 Antarctic cooling pad 7060

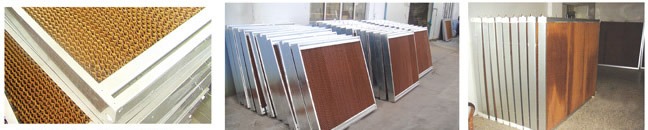

Optional cooling pad frame
Stainless steel frame Galvanized steel frame Aluminum alloy frame

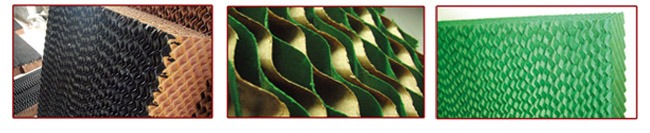

Several colors for selecting ( Any other colors can also be customized)
Black coat (washable) Mixed green & yellow color Green color
|
|

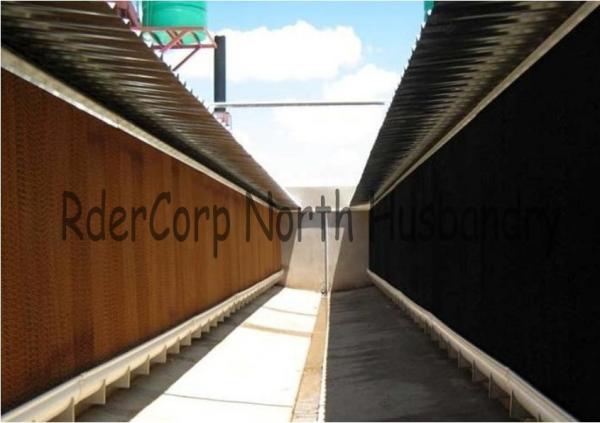

Poultry cooling system Images
|
